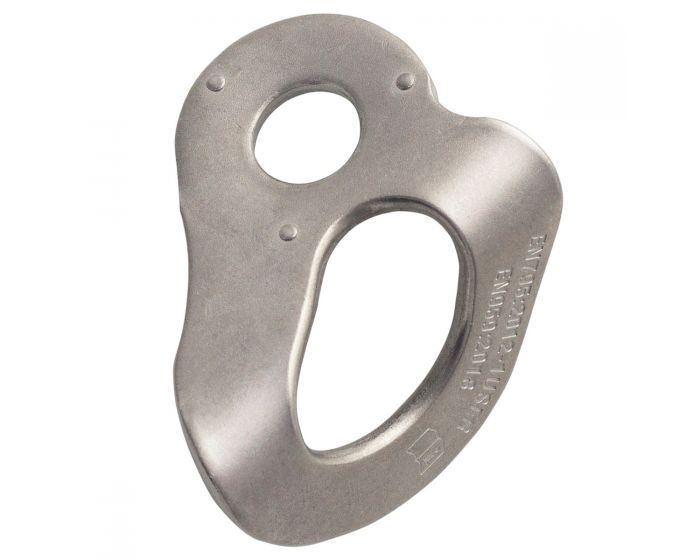

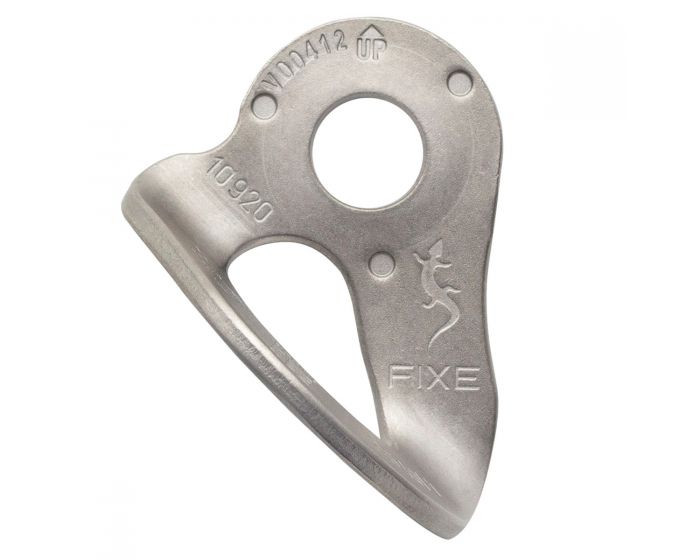

The Fixed Plate 316 in Stainless Steel from FIXEhardware is designed to offer maximum durability and performance in all outdoor conditions, except for the most corrosive environments. Manufactured in Barcelona from marine-grade stainless steel, this plate is the ideal choice for secure installation of climbing anchors on various rock surfaces.
Main Features
-
Rounded inner edges: Designed to minimize wear on carabiners, this plate ensures extended longevity of your equipment.
-
Optimal carabiner orientation: The unique geometry guides the carabiner into the best position, even on overhangs, ensuring secure placement.
-
Tapered washers: Thanks to its tapered design around the anchor hole, this plate creates a spring effect that enhances clamping force, ensuring constant pressure against the wall for a stronger hold.
-
Improved anti-rotation: Small notches on the plate reduce the risk of rotation under tension.
-
Optimized contact surface: The plate is designed to maximize contact surface with the rock, ensuring a stable and reliable fixation.
Technical Specifications
-
Breaking strength: 25 kN / 5620 lbs
-
Certifications: CE EN795:2012; EN959:2018
-
Available diameters: 3/8" and 1/2"
-
Weight: 57g (3/8"), 56g (1/2")
-
Material: Stainless steel 316L
Why choose stainless steel 316L?
Stainless steel 316L is a marine-grade quality, offering exceptional resistance to corrosion. It is perfect for long-term outdoor installations, except in the most corrosive environments where titanium would be preferable.
Lightweight design
With a reduced thickness of 3.5 mm (instead of 4 mm), this plate is now 12.5% lighter while remaining one of the strongest on the market.
Designed for performance
When placed on a roof, the geometry prevents the carabiner from coming into contact with the bolt head, ensuring smooth and safe operation.
Manufactured in Barcelona, Spain
Top European quality, designed for demanding climbers.
